Name: DOBOT CR Range
SKU: DOBOT
Availability: InStock

Description

Payload Range
5 – 30
kg

Repeatability Range
0.02 – 0.05
mm

Working Radius Range
900 – 1800
mm

Replace your current table section with this updated version:

CRA Series comparison

Model	Payload	Working radius	Weight	Repeatability	IP rating
CR5A	5 kg	900 mm	25 kg	±0.02 mm	IP54
CR6AL	6 kg	1800 mm	41.5 kg	±0.02 mm	IP54
CR10A	10 kg	1300 mm	40 kg	±0.03 mm	IP54
CR20A	20 kg	1700 mm	73 kg	±0.05 mm	IP54
CR30H	30 kg	1800 mm	98.5 kg	±0.05 mm	IP67

Highlights

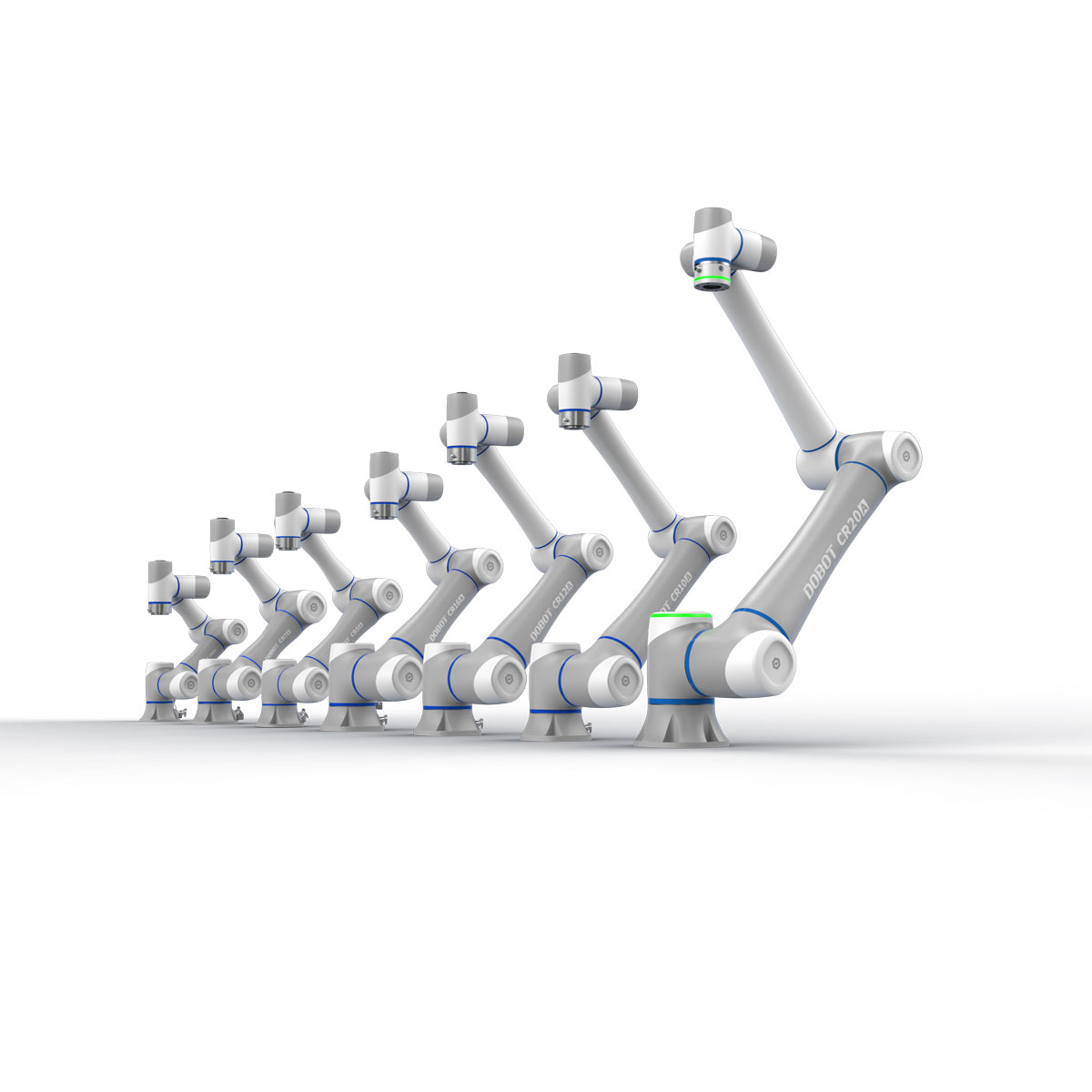

CRA Series overview

The Dobot CRA Series is a flexible range of collaborative robots designed for production teams looking to automate repetitive handling, loading, palletising, machine tending and assembly tasks. With multiple models available, the range allows you to choose the right payload and reach for your specific application.

Available across the CRA Series:

CR5A, CR10A, CR20A and CR30H model options
Robot control cabinet
Power and connection cables
DobotStudio Pro software compatibility
Support for end effectors and automation accessories

Optional available:

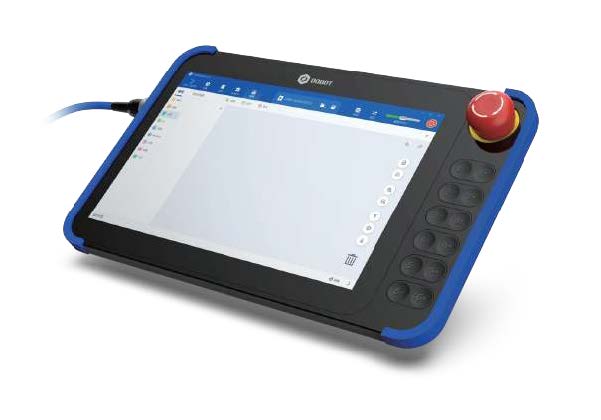

Teaching pendant
Vacuum gripper or suction cup
2D or 3D vision
Force sensor
Process package support

Fast return on automation investment

Dobot collaborative robots are designed for quick deployment, flexible programming and efficient integration. By selecting the right CRA Series model for your payload and reach requirements, businesses can reduce repetitive manual work, improve consistency and support a wide range of production tasks without the footprint of a traditional industrial robot cell.

Easy setup

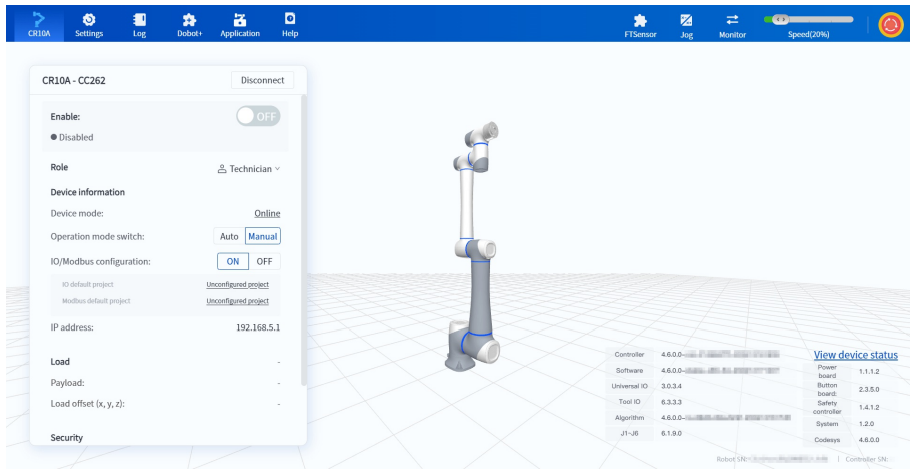

The CRA Series supports intuitive programming through DobotStudio Pro, including Blockly programming, script programming, process packages, ecosystem plugins and virtual controller features. This helps make the range suitable for different production environments, from lighter handling tasks through to larger automation applications.

High efficiency production support

The CRA Series can be used across machine tending, palletising, welding, pick and place, inspection, assembly, loading and unloading applications. With a choice of models available, users can match the robot to the task, whether they need compact handling, increased reach or higher payload capacity.

Model options for different payload and reach requirements
Fast response and stable motion performance
Precise positioning for repeatable production tasks
Multiple I/O and communication options
Flexible operation using PC, app or teaching device

Key benefits

Performance

Fast, accurate and stable motion performance across a range of industrial automation tasks.

Safety

Built-in safety features designed to support collaborative working environments.

Expansion

Standard interfaces and communication protocols help reduce integration costs across different applications.

Flexibility

Multiple model options, terminals, accessories and application scenarios to suit different production needs.

Typical applications

Palletising

Automate repetitive stacking and material handling tasks with configurable pallet patterns.

Machine tending

Support CNC loading, unloading and repeatable component handling processes.

Welding

Compatible with process packages for welding workflows and production support.

Pick and place

Use with grippers, suction cups and vision systems for flexible handling tasks.

Inspection

Combine with vision accessories for testing, measuring and quality checks.

Assembly

Suitable for light assembly, screw locking, glueing and production assistance.

Need help choosing the right Dobot robot?

Speak to us about payload, reach, tooling, accessories and integration requirements. We can help identify the best CRA Series model for your production process.

Ask About Integration

Additional information

Version:	CR5A, CR6AL, CR10A, CR20A, CR30H

DOBOT CR Range
